16ER Turning Threading Insert

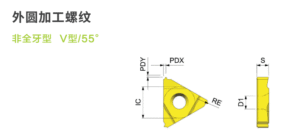

Insert Style: 16ER (External, Right-hand laydown).

Material: High-grade Solid Tungsten Carbide (often submicron grain for added wear resistance).

Cutting Direction: Right-hand (Standard).

Inscribed Circle (IC): 9.525 mm (3/8 inch).

Thickness (S): 3.52 mm (Standard thickness for size 16 inserts).

Thread Profile Options:

  ISO Metric: 0.5 mm to 3.0 mm pitch.

  UN / Whitworth: 48 to 8 TPI (Threads Per Inch).

  Included Angle: Commonly 60° (ISO/UN) or 55° (Whitworth/BSW).

Coating Process: Physical Vapor Deposition (PVD) for maintaining sharp cutting edges.

Hardness Compatibility: Suitable for workpieces ranging from soft non-ferrous alloys to hardened steels up to HRC 55.

ISO Code Compatibility: Compliant with ISO 13399 standards for digital tool data exchange.



Key Words:

Turning insert, Threading insert, Grooving insert, Parting insert, Cut-off insert, Thread grooving insert, Grooving tool, Parting tool

Categories:
Send Inquiry

Description

Product Information

16ER External Indexable Carbide Threading Insert The 16ER series is an industry-standard, laydown-style threading insert designed for high-precision external thread-turning operations on lathes. Engineered for efficiency, these inserts feature three cutting edges, offering an economical solution for high-volume threading tasks. They are widely used in sectors requiring high-accuracy joints, such as the automotive, aerospace, and general manufacturing industries.

  • Optimized Performance: Features excellent anti-built-up edge (BUE) properties and superior chipping resistance, making it ideal for both semi-finishing and finishing of various steel parts.

  • Versatile Design: Available in both Full Profile (which cuts the complete thread including the crest) and Partial Profile (V-profile) geometries that can handle a range of pitches.

  • Advanced Coatings: Typically finished with high-performance PVD coatings like TiAlN or Nano-AlTiNSi(N) to provide exceptional thermal stability and long-lasting durability during high-speed cutting.

  • Precision Threading: Designed to eliminate the need for secondary grinding operations while delivering smooth chip removal and flawless surface finishes on stainless steel and alloys.

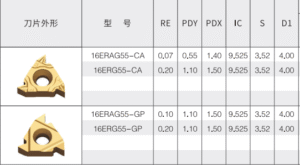

Specifications:
