BD600 Solid Carbide End Mill

High Rigidity: The solid carbide core minimizes tool deflection during deep-reach profiling operations.

Superior Chip Evacuation: The 2-flute design provides ample space for chip removal, crucial for preventing heat buildup in slotting and 3D milling.

Vibration Dampening: Engineered geometry reduces chatter, leading to improved tool life and tighter tolerances.

Standardized Production: Manufactured to ISO 9001 quality standards and compliant with DIN 6527 tool dimensions.



Key Words:

Carbide inserts, CNC inserts, Cutting tool inserts, Indexable inserts, Metal cutting inserts, CNC cutting tools, Precision cutting tools, Carbide end mills, Solid carbide drills, Indexable insert tools, CNC tool holders, Thread milling cutters, High speed end mills, CNC tool solutions, CNC tooling supplier, Precision tool manufacturer, CNC machining parts, Custom CNC tooling, Metal cutting tools, Milling and turning, CNC drill bits, Industrial tooling solutions, CNC tool marketplace, Cutting tool catalog, CNC tooling export

Categories:
Send Inquiry

Description

Product Information

BD600 Solid Carbide Flat End Mill The BD600 series end mill is a high-precision tool engineered for 3D profiling, contouring, and finishing operations in hardened materials. Featuring a specialized Bronze Nano-AlTiN Coating, this mill offers exceptional thermal stability and surface hardness, making it ideal for high-speed machining (HSM). Its ultra-fine sub-micrograin carbide substrate provides the necessary toughness to handle complex mold and die applications with superior dimensional accuracy.

  • Design Purpose: Optimized for 3D curved surface machining, slotting, and complex contouring.

  • Material Compatibility: Expertly handles materials up to HRC 60, including alloy steel, tool steel, and pre-hardened steel.

  • Surface Excellence: The Nano-coating minimizes friction, ensuring an ultra-smooth workpiece finish and reduced secondary polishing time.

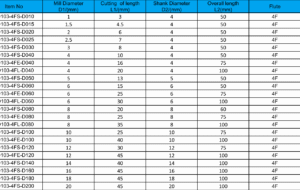

Specifications

Feature Technical Details
Material Sub-micrograin Solid Tungsten Carbide
Coating Advanced Bronze AlTiN / TiSiN
Number of Flutes 2-Flute (Standard for chip clearance in profiling)
End Typ Flat
Shank Type Straight Cylindrical Shank (h6 Precision Tolerance)
Helix Angle 30° / 35° High-performance helix
Diameter Range R0.5mm – R10.0mm (Metric standard)
