Product Information:

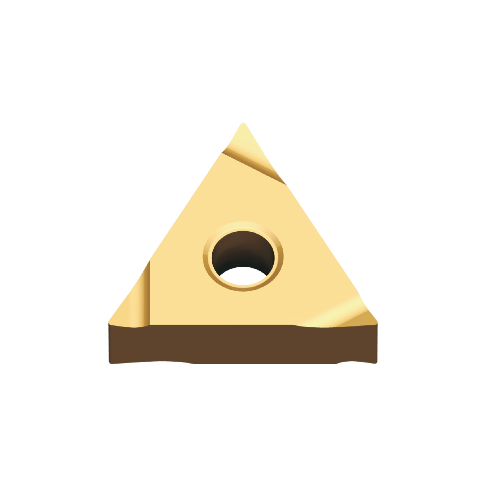

The TNGG160401R turning insert is a high-performance carbide tool designed for precision machining of small parts. Crafted from premium carbide, it features a sharp, durable cutting edge that ensures smooth surface finishes and stable cutting performance. Its advanced chip-breaking design reduces cutting resistance, prevents workpiece deformation, and prolongs tool life, making it ideal for CNC turning, fine finishing, and high-precision operations.
This insert is suitable for a wide range of materials including steel, stainless steel, and alloys, delivering consistent dimensional accuracy and improved machining efficiency. Its robust construction provides high reliability during continuous production, making it a perfect choice for industrial manufacturing, automotive parts, mold making, and electronics components.
With the insert, manufacturers can achieve superior cutting performance, enhanced productivity, and precise results on every project. Its combination of precision, durability, and versatility makes it a must-have tool for professionals seeking high-quality, reliable turning solutions.
Product Details:
Precision Ground Surface Finish
The insert undergoes ultra-precise surface grinding to ensure excellent dimensional accuracy, smooth cutting action, and consistent contact with the workpiece. This minimizes vibration, improves surface finish, and reduces the risk of tool marks on small, intricate parts.
Advanced Multi-Layer Coating Technology
Featuring a high-performance PVD or CVD multi-layer coating, the insert exhibits superior wear resistance, reduced friction, and excellent adhesion. This coating protects the cutting edge against abrasion, built-up edge formation, and thermal degradation, resulting in a significantly longer tool life under both high-speed and heavy-duty cutting conditions.
Optimized Geometry for Efficient Chip Control
The insert is engineered with an advanced chipbreaker design and precise rake angles to achieve smooth chip flow, prevent clogging, and maintain stable machining even on materials that are difficult to cut. This enhances machining efficiency, reduces downtime, and ensures consistent part quality.
High Thermal and Mechanical Stability
The combination of a robust substrate and a thermally resistant coating allows the insert to maintain edge sharpness and dimensional integrity under high-speed cutting, elevated temperatures, and intermittent cutting operations. This improves reliability and reduces the frequency of tool changes.
Reinforced Cutting Edge for Increased Durability
The insert’s edge is mechanically strengthened to resist chipping and edge breakdown, even under interrupted cuts or heavy feed rates. This ensures high reliability and reduces scrap, particularly in small-part precision turning.

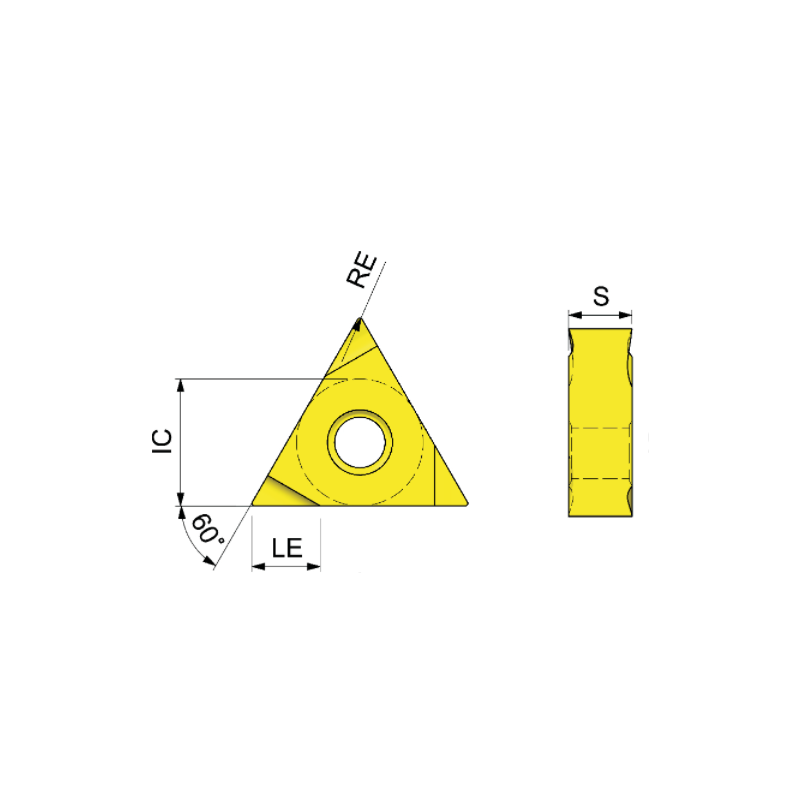

Main technical parameters:
Grinding chip-breaking groove TNGG-F
| Type | Hand | RE | IC | LE | S |
| TNGG160401R | R | 0.1 | 9.525 | 5.0 | 4.76 |
| TNGG160402R | R | 0.2 | 9.525 | 5.0 | 4.76 |
| TNGG160404R | R | 0.4 | 9.525 | 5.3 | 4.76 |
| TNGG160408R | R | 0.8 | 9.525 | 5.3 | 4.76 |
