High-Performance Helix Drilling Insert with Serrated Cutting Edges for Superior Chip Control

Model:SPMT120408

Insert Shape: S, Square-shaped insert(90°)

Clearance Angle: P, The relief angle is 11°

Tolerance Class: M, Medium Tolerance

Chip Breaker and Hole:T, There is a Center Hole, single Chip Breaker

Cutting Edge Length: 12, Inscribed Circle (I.C.) diameter is 12.70 mm

Thickness: 04, 4.76mm



Keywords：

Drilling Insert, Milling Insert, PVD Coated Insert, CVD Coated Insert, CNC Milling Insert, CNC Tool, Cutting Tool, Turning/Drilling Insert, Carbide Insert, Tool Holder, End Mill, Carbide Tap, Drill Bit, Milling Cutter, Carbide Reamer, Chamfer Mill

Categories:
Send Inquiry

Description

Product Information:

Square Geometry for Strong Edge Stability: Its square insert geometry provides high cutting-edge strength and stability, making it ideal for medium to heavy-duty milling with improved reliability.

Optimized Edge Preparation for Smooth and Stable Cutting: The optimized edge preparation ensures smoother, more stable cutting performance, reduces tool marks, and improves surface quality on the workpiece.

Screw-On Mounting for Secure and Accurate Positioning: The screw-on mounting design guarantees secure and precise positioning of the insert, minimizing the risk of loosening and ensuring consistent machining performance.

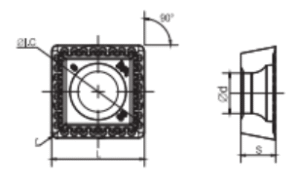

Main technical parameters:

Length Size (mm)
r L I.C S d
12 0.8 12.7 12.7 4.76 5.5



Type ap (mm) f (mm/rev)
SPMT120408 1.00-0.60 0.06-0.15
