Product Information:

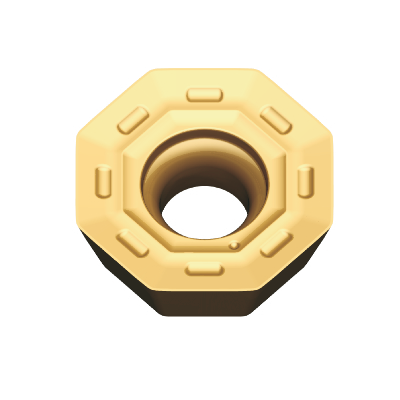

These inserts are indexable carbide face milling inserts designed for medium-to-heavy milling operations. They feature an entry angle of 43°, making them suitable for producing flat surfaces, shoulders, and large contact area milling.
- Positive cutting geometry for smooth chip flow and lower cutting forces.
- Suitable for face and shoulder milling with good surface finish.
- Indexable design allows multiple re-indexes, lowering tooling cost per edge.
- Robust for steel, cast iron, and mixed materials depending on grade and chipbreaker.
- Can be paired with various coating grades to optimize wear resistance or toughness.
Coating & Surface Treatment:
Modern milling inserts usually come with multi-layer PVD or CVD coatings to enhance performance.
PVD Coatings (e.g., TiAlN, AlCrN):
- Provide high hardness and oxidation resistance.
- Good for general steel, stainless steel, and high temp alloys.
CVD Coatings (e.g., TiCN + Al₂O₃):
- Provide excellent wear resistance for cast iron and harder steels.
Coating improves tool life, reduces built-up edge and thermal wear, and supports higher cutting speeds.
Typical Surface & Chip Control:
The inserts may include chipbreaker geometry on the face to manage chip shape and evacuation (varies by model and grade).
Modern chipbreakers help control the cutting forces and reduce chatter, improving finish quality.
Main technical parameters:
|
Type |
IC | S | BS |
APMX |
| OD_0504_ | 12.70 | 4.76 | 1.20 |
3.00 |
| OD_0605_ | 15.875 | 5.56 | 1.60 |
4.00 |
|
Type |
RE |
Cutting Parameters |
|
| ap(mm) |
fz(mm/z) |
||
|
ODHT0504ZZN-WL |
0.8 | 1.00-2.50 | 0.10-0.25 |
|
ODMT0504ZZN-WL |
0.8 | 1.00-2.50 | 0.10-0.30 |
| ODHT0605ZZN-WL | 0.8 | 1.20-3.00 |
0.10-0.25 |
| ODMT0605ZZN-WL | 0.8 | 1.20-3.00 |
0.10-0.30 |
| ODMT0504ZZN-WM | 0.8 | 1.00-2.50 |
0.10-0.30 |
| ODMT0605ZZN-WM | 0.8 | 1.20-3.00 |
0.10-0.30 |
