Precision Engineered Rotary Drill Insert for Industrial Machining and High-Accuracy Metalwork

Description

Introduction:

The SOMT-LM indexable drilling insert represents the pinnacle of precision carbide cutting technology for high-feed, interrupted, and heavy-duty drilling of aerospace titanium alloys, hardened steels, and nickel-based superalloys. Engineered with ultra-fine PVD/TiAlN multilayer coatings exhibiting optimized residual stress gradients, and a micro-chipbreaker topology tailored for controlled chip segmentation, it maximizes chip evacuation, suppresses built-up edge formation, and minimizes adhesive, abrasive, and thermal wear. The thermally stabilized carbide substrate ensures superior fracture toughness, thermal shock resistance, and mechanical resilience, while carefully designed rake and clearance angles balance cutting forces, enhance heat dissipation, and reduce micro-vibrations. The insert maintains exceptional edge integrity, hole dimensional fidelity, and surface microfinish under extreme high-speed dry and semi-dry drilling operations. Optimized for aerospace, automotive, and die/mold precision components, it delivers consistent process repeatability, extended tool life, and material-specific cutting performance. By integrating substrate toughness optimization, thermal management, and advanced chipflow engineering, the insert enables ultra-stable cutting dynamics, maximized productivity, and unparalleled reliability in the most demanding high-precision drilling applications.

1. Engineered Chip Compression Ratio for Efficient Chip Control

The LM chipbreaker geometry is specifically designed to regulate the chip compression ratio within the primary deformation zone. This controlled compression promotes consistent chip segmentation and prevents the formation of long continuous chips, significantly improving chip evacuation efficiency.

2. Optimized Contact Stress Distribution Along the Cutting Edge

Finite-element-based geometry optimization ensures a balanced contact stress distribution between the insert and the workpiece. This minimizes localized peak stresses and enhances edge integrity under heavy cutting conditions.

3. Advanced Cutting Zone Thermodynamic Management

The SOMT-LM insert geometry promotes efficient heat dissipation and controlled heat flow within the cutting zone. By reducing heat concentration at the cutting edge, the insert maintains structural stability and prolongs tool life.

4. Precision Ground Cutting Geometry for Process Consistency

Each insert undergoes high-precision grinding to ensure strict dimensional tolerance and geometric repeatability. This manufacturing consistency guarantees predictable cutting behavior across multiple tool changes.

5. Multi-Layer Coating Architecture with Gradient Hardness

The coating system features a gradient hardness structure, combining a wear-resistant outer layer with a tough intermediate layer and a strong adhesion interface. This architecture significantly improves coating durability and resistance to abrasive wear.

6. Micro-Edge Preparation for Enhanced Edge Integrity

Controlled micro-edge honing improves the resistance of the cutting edge to micro-chipping and premature edge failure. This preparation method provides an optimal balance between cutting sharpness and mechanical strength.

7. Substrate Grain Refinement Technology

The carbide substrate incorporates refined grain size distribution to enhance mechanical strength and fracture toughness. This microstructural control enables the insert to withstand high impact loads during demanding drilling operations.

8. Reduced Cutting Force Through Optimized Rake Geometry

The positive rake configuration within the LM chipbreaker reduces cutting forces and improves cutting efficiency. Lower cutting forces also contribute to reduced spindle load and improved machine tool stability.

9. Vibration-Damping Geometry for Stable Drilling

The insert’s structural design improves dynamic stability during drilling by minimizing cutting vibration. Reduced vibration leads to improved hole straightness, surface finish, and dimensional accuracy.

10. Superior Wear Resistance in High-Temperature Machining

The advanced coating system provides exceptional resistance to oxidation, crater wear, and flank wear under elevated cutting temperatures.

11. Reliable Performance in Interrupted Cutting Conditions

The robust edge geometry and tough substrate enable the insert to maintain stable performance even in interrupted drilling applications.

12. Designed for High Metal Removal Rate (MRR) Applications

SOMT-LM insert supports aggressive feed rates and high metal removal strategies, making them ideal for high-productivity drilling operations.

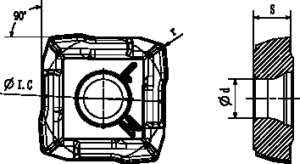

Main technical parameters:
